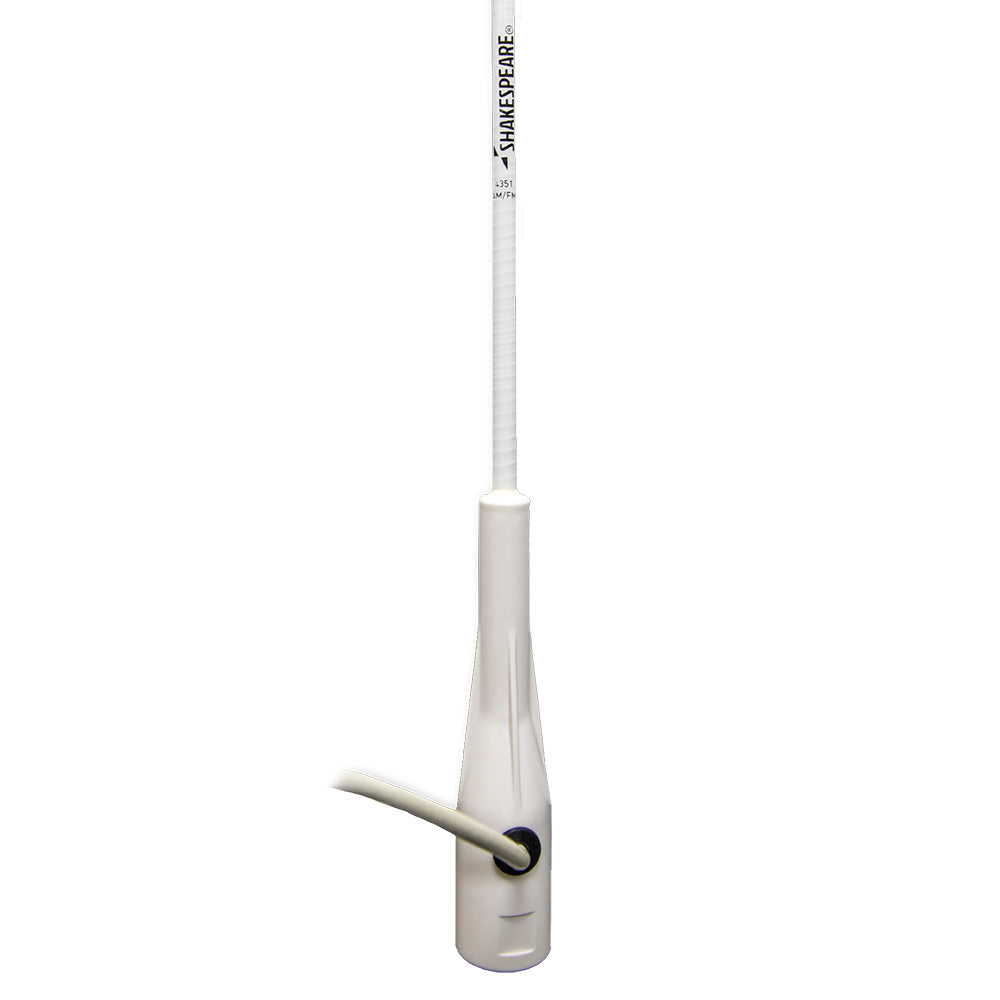

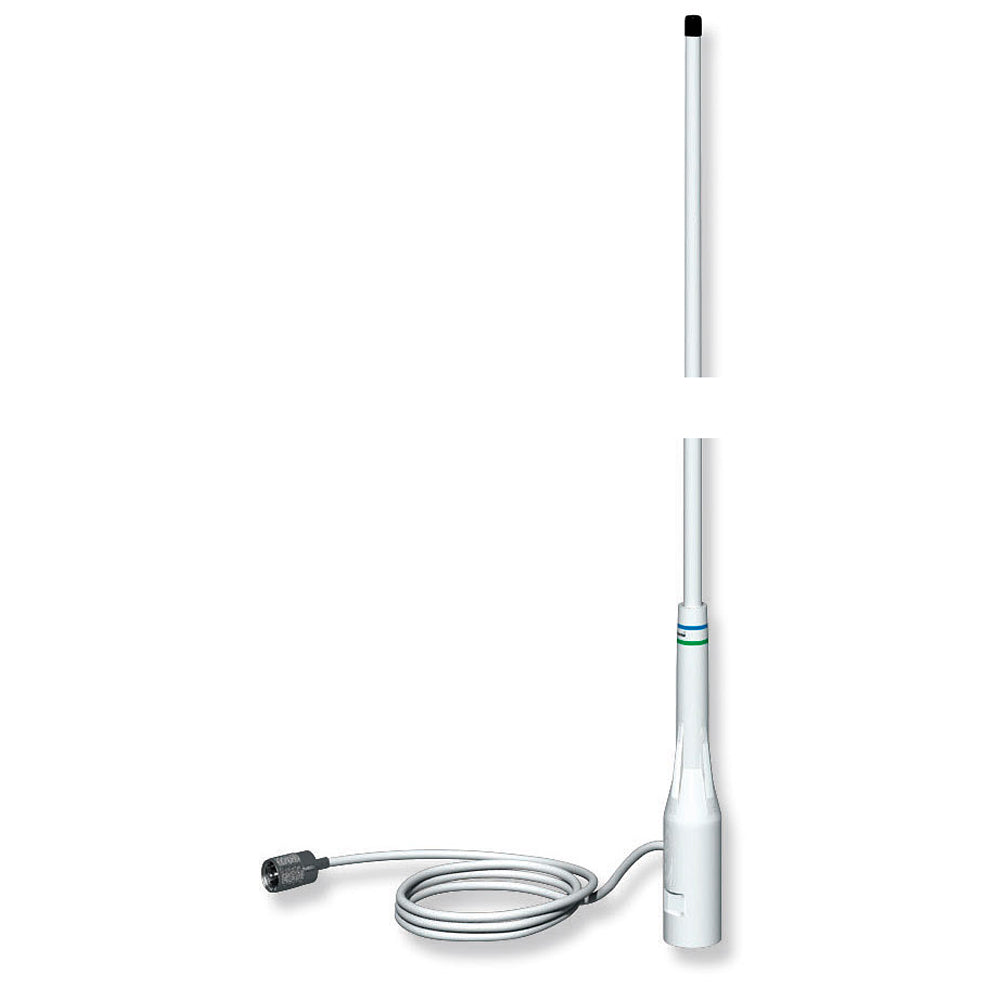

Shakespeare Style 4351
3' COMBINATION AM/FM
This 3' combination antenna features Shakespeare's exclusive distributive load for super signal pulling power. The coil is permanently sealed in Shakespeare's white fiberglass.
The Style 4351 has a 1"-14 thread nylon ferrule for use with standard marine mounts.
- Includes 10' RG-62 coax with Motorola plug installed
- One section, 39" overall length
- Nylon ferrule with standard 1in-14 thread
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency: |
550-1600 KHz, 88-108 MHz |
Impedance: |
(Ohms): 93 |
Termination: |
10' RG-62 cable, Motorola Plug |
Height (feet): |
3 |
Polarization: |
Vertical |
Radiation pattern: |
Omni-directional |
Specifications:
- Antenna Band: AM/FM
- Color: White
- Construction: Fiberglass
- Ferrule Type: Nylon
- Length (Inches): 39"
- Box Dimensions: 3"H x 3"W x 44"L WT: 1.4 lbs
- UPC: 719441400026
Quick Guide (pdf)
