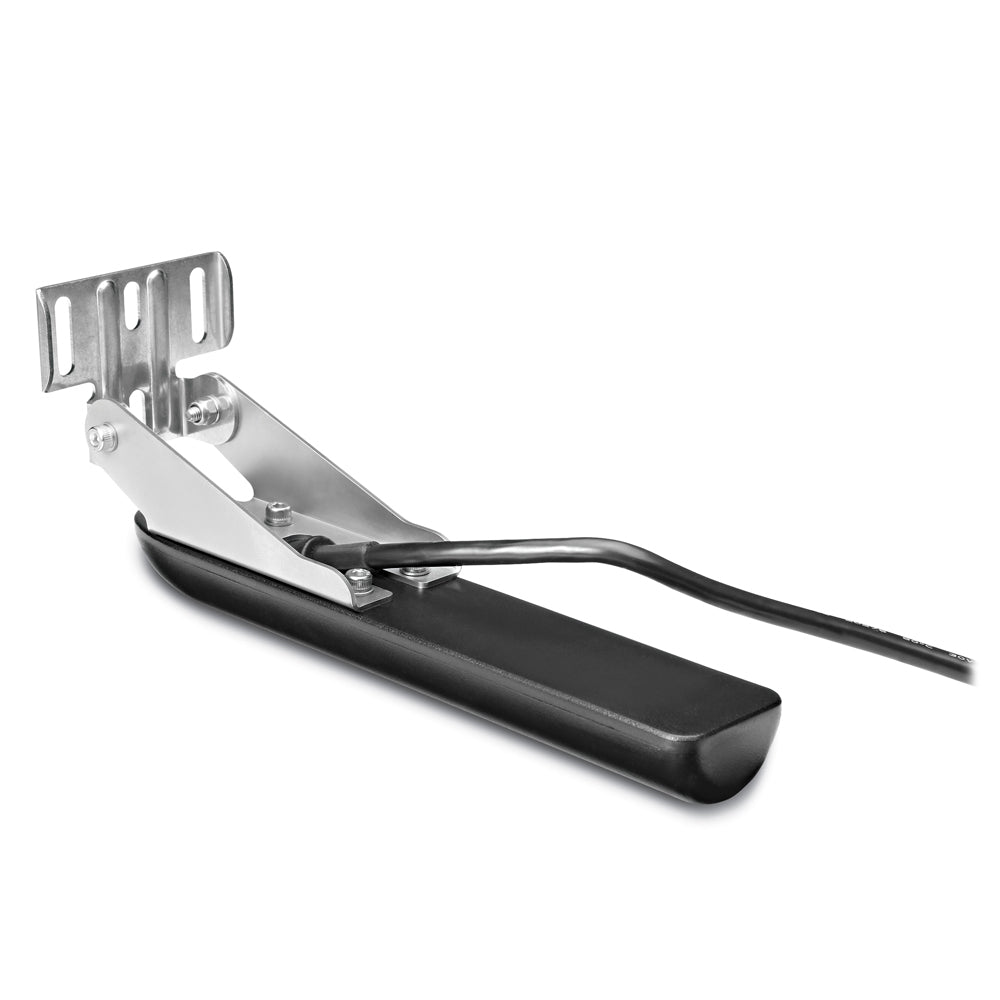

DownVü™/SideVü™ 12-Pin Transom Mount Transducer for GCV™ 10
Get ultra-clear sonar pictures of objects, structure and fish that pass below and to the side of your boat with this 12-pin transducer.
This 20' transducer cable with built-in fast response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft
(DownVü™) and 500 ft left and right (SideVü™) an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar.
Transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
- GCV™ 10
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Temperature: Yes
- Speed Included: No
- Pins: 12
- Cable Length (Feet): 20'
- Mounting Style: Transom
- Imagining: Down/Side
- Chirp: Non Traditional
- Box Dimensions: 3"H x 7"W x 9"L WT: 1.8 lbs
- UPC: 753759152796
Owner's Manual (pdf)
